Using Brick and Precast Together: A Designer’s Guide to Contrast and Detail

On a plywood worktable, a designer and a mason slide thin brick samples along the edge of a precast panel, nudging them two inches at a time until the coursing hits the corner cleanly. Then they stop. One line works. The next one does not. That tiny adjustment is Brick and Precast design in miniature.

If you have ever seen a facade that looked sharp on the sample board but awkward at the window head, you already know the usual failure. The team chose color, texture, or bond first, then tried to force those decisions onto fixed panel widths, corner returns, movement joints, and door openings. Reference material on thin brick precast panels describes the appeal clearly: you can get the look of field-laid masonry with the installation speed of precast, often with cost advantages that owners and builders notice.

This is where the work gets practical. You need the right drawings, the right panel coordination, a panel grid that controls the coursing, and a mockup that tells the truth in daylight. Whether you are shaping a townhouse entry, a K-12 addition, or a mixed-use facade with coping, wall caps, columns, pier caps, and stone moldings, the process is the same: coordinate early, detail precisely, and refuse to guess at the corners.

Prerequisites and tools before you start with Brick and Precast

Gather drawings, specs, and manufacturer CAD details

Start with the documents that govern the panel geometry, not the documents that merely sell the look. That means elevations, opening schedules, preliminary panel grids, spec sections, and manufacturer detail sheets. Coral Cast puts CAD and CNC-based design support front and center as a resource, which is a useful signal: panel coordination belongs in technical documentation from day one.

You also need to know which panel approach you are actually designing around. Different systems carry different rules for corners, bond patterns, support, and shop drawing logic.

Tools for layout, measurement, and sample review

You do not need exotic gear. You do need discipline. A basic coordination table should include:

• Printed elevations at a usable scale, such as 1/4 inch or 1/2 inch
• A tape measure, scale rule, and laser level
• Trace paper or digital overlays for testing bond and panel joints
• Masking tape, markers, and colored pens for course control lines
• Actual brick and precast samples — not just color chips
• A straightedge long enough to read reveals and edge alignment

If your scope includes adjacent architectural precast pieces — thin veneer, decorative stone, coping, wall caps, pavers, balustrade, or columns — keep those samples on the same table. The facade never experiences these elements one by one. Your eye reads them together.

Decide who owns design coordination

Someone must be responsible for carrying the pattern from design intent through fabrication. If nobody owns that task, the bond will drift between trades. On some jobs that person is the architect. On others it is the precast fabricator working closely with the architect and general contractor. The exact title matters less than the clarity.

Define the coordinator’s duties early:

• Lock the panel grid before finalizing the bond
• Track course counts at every window and door
• Approve the corner strategy
• Record mockup decisions in the shop drawings
• Review erection sequencing for pattern continuity

Rule of thumb: if the documents are incomplete, do not finalize the brick pattern.

Step 1: Define the design goal and the visual hierarchy for Brick and Precast

Identify the focal elevations

Not every elevation deserves the same emphasis. Start by marking where the eye goes first: the street-facing facade, the main entry, the corner visible from 100 feet away, the parapet line above a storefront, or the residential stoop framed by a pier cap and wall cap. Those are the places where the material hierarchy must feel intentional.

On a small multifamily project, you might let brick dominate the first two floors to give the building a familiar scale, then let smooth precast control the parapet, sill bands, and window surrounds. On a church addition or civic building, the reverse may work better — larger precast fields with brick used as a denser infill or accent panel.

Set the contrast level between materials

Contrast is not only about color. It is also about surface depth, unit rhythm, and how much each material wants attention. A deeply textured brick paired with heavily rusticated precast can become noisy fast. A warm red or brown brick against a quiet, light gray panel can feel crisp and deliberate. A buff brick next to a cream-toned cast stone trim can soften the whole composition.

Think in pairs. If brick is the protagonist, let precast frame, cap, terminate, or sharpen it. If precast is the protagonist, brick should support the larger geometry rather than compete with it.

Start with the visual hierarchy, not the color palette.

Confirm the project’s performance goals

Design intent still has to answer real project pressures: speed, durability, maintenance, and constructability. One reason thin brick in precast keeps gaining attention is simple — designers can preserve a masonry look while using a panelized installation process that moves faster in the field.

Your performance goals may be different on each project. A homeowner may care most about long-term upkeep around a front entry. A retail developer may care about schedule and repeatability across several facades. An architect on a school project may care about durability at corners, sills, and high-traffic edges. Write those priorities down now, because they will shape every later detail.

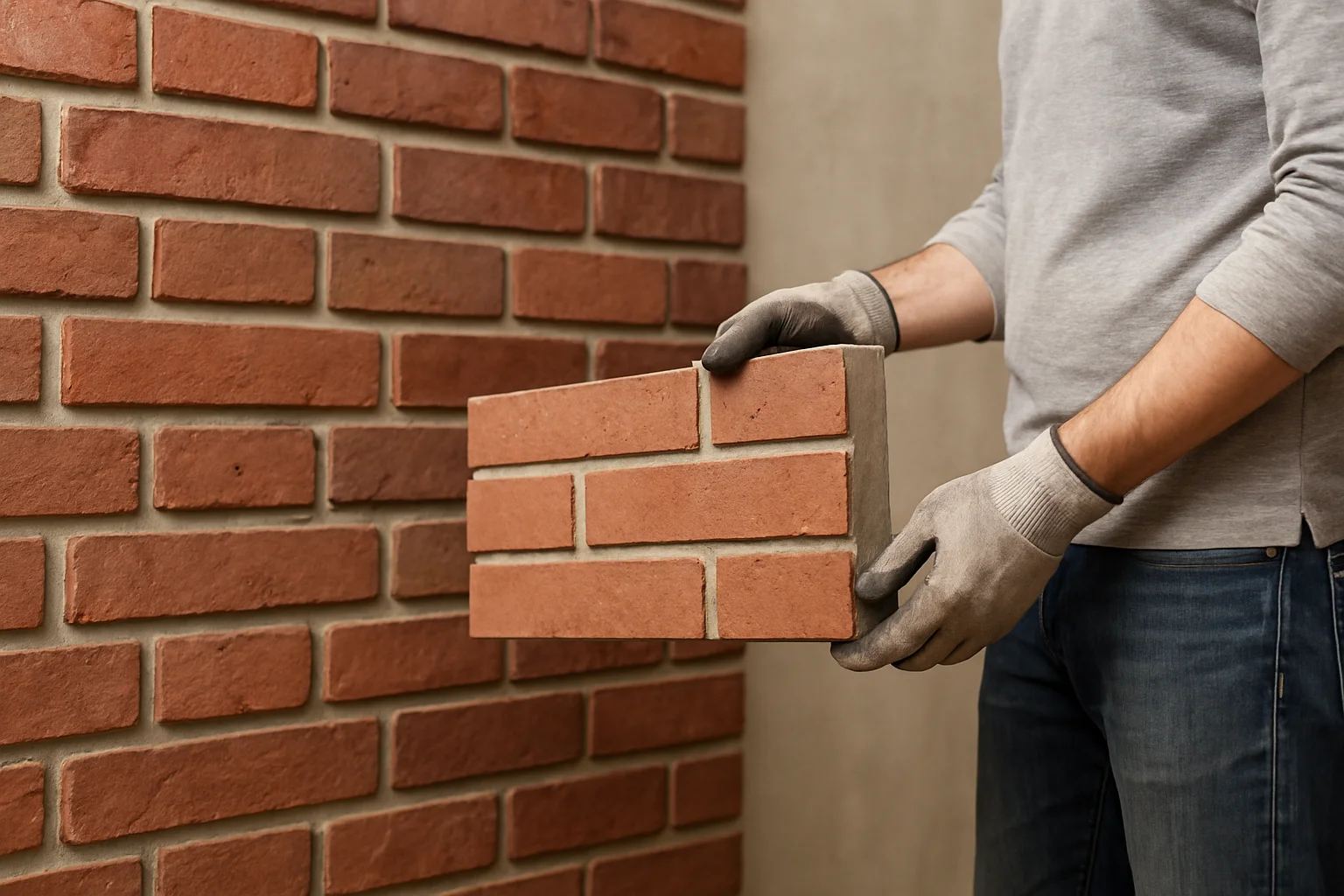

Step 2: Choose the brick format, bond, and panel system

Compare thin brick, panel brick, and system-specific products

This is where good-looking ideas either become buildable or start drifting into wishful thinking. The reference article on thin brick precast panels describes thin brick as a 1/2-inch thick extruded clay product. That thickness matters. It affects return conditions, reveals, interface depth, and how the unit visually reads beside the precast surface.

Product names vary by supplier, and that is exactly the point. Read the assembly details before you sketch the pattern. Do not borrow a corner idea from one system and assume it works in another.

Pick the bond pattern that survives panel boundaries

Some bonds are forgiving. Some are unforgiving. Running bond can tolerate certain panel joints and minor dimensional adjustments more gracefully than stacked bond, where every vertical alignment error telegraphs across the facade. Herringbone, basket weave, and heavy soldier-course accents can be beautiful, but they need even more discipline at panel seams and openings.

Ask a blunt question: if a panel joint cuts through this pattern, will the facade still look calm? If the answer is no, you either need a different bond, a different panel grid, or a different place to use that pattern.

Do not pick the bond first and hope it fits the panel later.

Match brick size to the panel module

A handsome brick unit can still be the wrong unit. Long-format brick, tall units, or unusual course heights may create leftovers you cannot hide at corners or jambs. A three-inch remainder at every vertical panel joint is not a quirky design flourish. It is a warning sign.

Test the brick size against the full elevation module. Carry the coursing through a 12-foot panel. Then test it at the next panel. Then run it through a window head and around an outside corner. If the pattern only works in the middle of an idealized wall, it does not work yet.

Step 3: Lay out coursing, panel widths, openings, and corners

Align coursing to fixed panel widths

The thin brick reference makes this point directly: wall panels have fixed widths, so each panel must be evaluated to see how the brick coursing will fit. That statement should sit at the top of every coordination meeting. Your panel grid is not a background condition. It is the governing geometry.

A reliable sequence looks like this:

1. Set a control datum at grade, sill line, or another stable horizontal reference.
2. Run the brick coursing across the entire elevation on paper or in the model.
3. Mark every vertical panel boundary.
4. Check what happens at each boundary before touching the corners.
5. Only then finalize reveals, returns, and edge conditions.

The panel grid should be the master reference, not the brick sample board.

Detail head, sill, and jamb transitions

Door and window openings are not interruptions to solve later. The same reference article calls them out as a core design consideration, and that is right. Openings are where a clean pattern often falls apart — especially at heads where half-courses or slivers suddenly appear.

Use the transition deliberately. A precast sill can sharpen the base of the opening and set a consistent projection. A precast head or lintel expression can absorb dimensional changes that brick alone would expose. Jambs can either receive the brick cleanly or frame it with a reveal. If your facade package also includes coping, decorative stone trims, or stone moldings at the entry, keep the reveal logic consistent from window to window.

Resolve inside and outside corners early

Corner development with thin brick is heavily driven by aesthetic choice, and that is more than a stylistic note. It means you have options, but you need to choose one before shop drawings harden. You can wrap the bond, terminate the brick with a deliberate vertical joint, let the precast own the corner, or create a framed return that turns the corner into a feature.

Outside corners get most of the attention because they are so visible, but inside corners matter too. They can conceal accumulated drift. They can also betray it. We often test both on the same overlay, because a corner that looks elegant in isolation may create a terrible remainder at the next window jamb.

Step 4: Detail joints, tolerances, and interfaces

Set joint locations and reveal depths

Now zoom in. The facade lives or dies at the interfaces — where the brick field meets a smooth panel border, where a precast band passes a window head, where a wall cap lands above a brick pier, where a column base shifts the reveal by a half inch. These are small moves. They read from far away.

Draw the joints intentionally. Decide which lines are flush, which lines recess, and which ones should throw a shadow. A clean reveal can do more design work than an extra color ever will. On a restrained facade, a simple 1/2-inch to 3/4-inch shadow line between brick and precast may be enough to keep the materials legible without making them feel unrelated.

Allow for tolerances at material transitions

Every trade hears the word “exact” and quietly translates it into “within reason.” Your details need room for that reality. Precast fabrication has tolerances. Erection has tolerances. Sealant joints have tolerances. Brick modules do too, even when they are cast into a panel.

Coordinate sealants, flashings, and drainage paths

The appeal of precast-plus-brick partly rests on efficiency. That benefit evaporates when interfaces are unresolved and every crew starts improvising. Sealants, flashings, and drainage paths should be part of the design conversation early, not redlined in panic during submittals.

Coral Cast organizes its work across architectural precast concrete products, precast architectural stone, and related facade elements, which is a good reminder that these interface decisions must survive very different building types. A townhouse stoop, a warehouse office, and a school entry all need the same discipline: control water, allow movement, and keep the visual line intact.

If the joints are awkward, the whole façade will look forced.

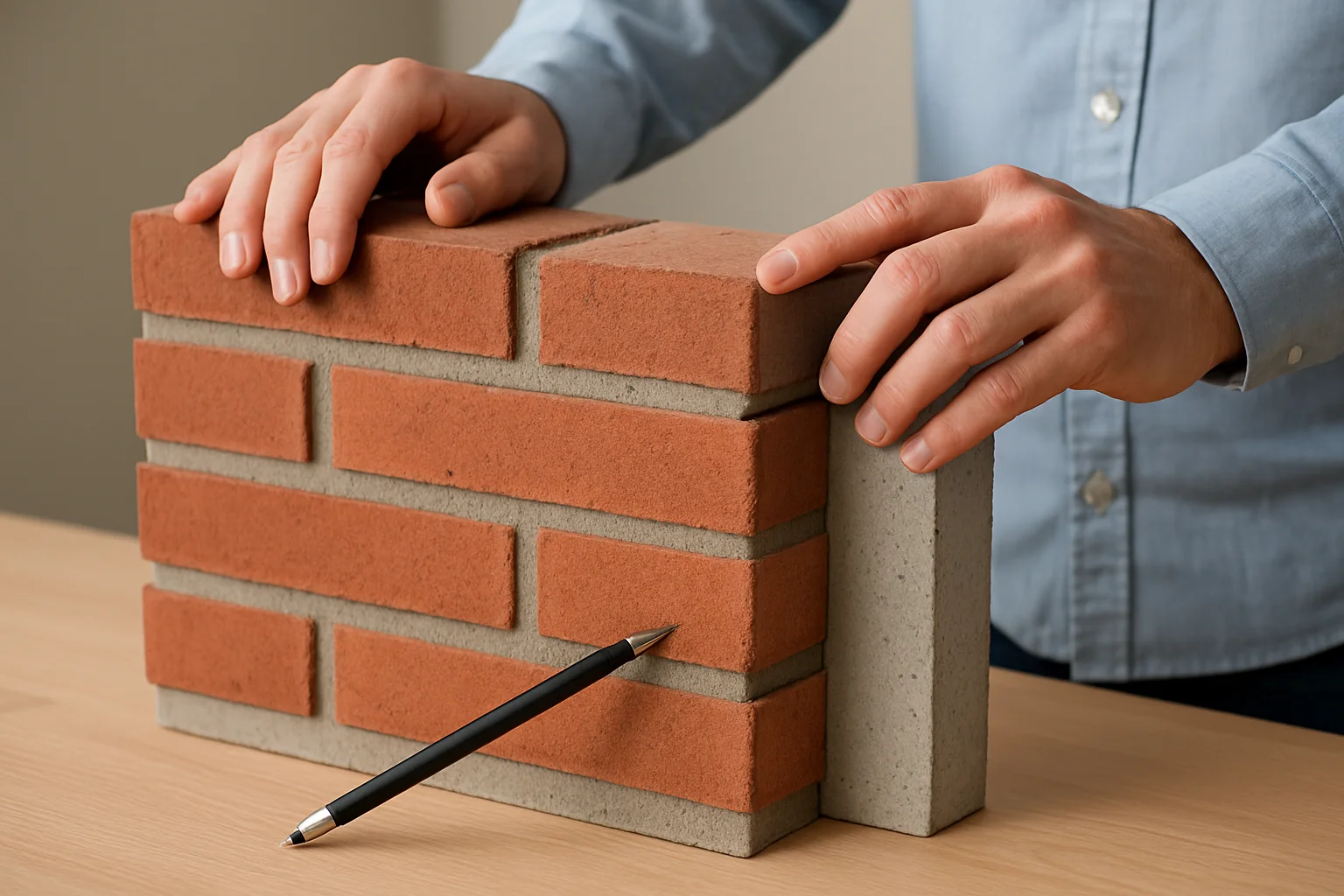

Step 5: Build and review a sample or mockup

Assemble a corner sample and a flat sample

A flat sample tells you almost nothing about the hardest part of the job. Build a corner. Better yet, build a corner and a section with an opening. If your design hinges on how the coursing lands at a window head or how the brick dies into a precast frame, the mockup must show that condition physically.

A small 12-inch sample card cannot answer facade questions. A mockup that includes one corner, one field area, and one transition can.

Check color variation and surface texture

The source material around thin brick and panel systems emphasizes choice: size, color, and texture options keep expanding. That is good for design. It is also exactly why mockup review matters. The same brick can read red-brown in one blend, chestnut in another, and almost purple when placed beside a cool gray precast face.

Study more than hue. Check surface sheen, mortar tone, arris sharpness, and how the precast finish reacts beside the brick texture. If you are pairing brick with decorative stone, thin veneer, or a molded surround, the texture hierarchy needs to be readable from both 6 feet and 60 feet.

Approve the look in daylight and shadow

Take the mockup outside. Morning light tells you one story. Late afternoon tells you another. Wet weather changes things again. On a north-facing elevation, shallow reveals may disappear. On a west-facing facade in October light, the same reveals can become the whole composition.

Never approve a façade from a single sample card.

Do not rush the sign-off. Photograph the mockup, stand back across the street, and compare it to the design intent drawings. This is the cheapest moment in the project to change your mind.

Step 6: Coordinate fabrication, installation, and field checks

Issue coordinated shop drawings

Once the mockup is approved, convert that decision into fabrication language. Coral Cast’s emphasis on CAD and CNC-based design production is relevant here again: clean installation begins with fabrication-level documentation. Your shop drawings should not merely show panel size. They should show course counts, unit orientation, joint widths, reveal depths, return conditions, edge treatments, and the exact location of every critical opening.

If a detail was debated during mockup review, record the final answer. Do not assume everyone remembers the verbal decision made three weeks ago on a windy Tuesday morning.

Verify panel sequencing and labeling

A good-looking facade can still be installed badly if the sequencing is loose. Each panel should have a clear piece mark, orientation, and erection sequence tied to the elevation. A mirrored panel installed in the wrong bay can break the bond instantly. A rotated corner panel can do worse.

Before production or shipping is far along, confirm:

• Piece marks match the elevation sheets
• Corner panels are identified unmistakably
• Openings are labeled by floor and bay
• Special edge conditions are called out where brick dies into precast
• Erection order supports visual continuity on the most visible elevations

Inspect alignment during erection

Crane day is not the time to redesign the facade. It is the time to verify that the built work matches the approved one. Superintendents, installers, and design representatives should compare the first erected panels to the mockup and the shop drawings before the rhythm of installation speeds up.

Field checks should be simple and ruthless:

1. Confirm panel orientation before lifting.
2. Check vertical alignment at the first panel-to-panel joint.
3. Review coursing at the first window head and the first outside corner.
4. Verify reveal continuity across at least one full bay.
5. Stop early if the pattern is drifting.

Good field installation starts with clear shop drawings, not with last-minute adjustments.

Common mistakes to avoid

Choosing the brick before the panel module

This is the classic mistake. The sample board wins the room, everyone loves the bond, and only later does somebody overlay it on the panel grid. Then the problems show up: sliver units, broken rhythm at vertical joints, and corners that need visual tricks to survive.

If you remember one warning from this entire process, let it be this: the brick is not floating free. It belongs to a panel geometry.

Ignoring openings and corner conditions

The reference material on thin brick in precast is explicit: fixed panel widths, door openings, window openings, and corner development all need to be evaluated during design. Ignore any one of those, and the elevation may look fine only in the one cropped view where the problem does not appear.

Openings and corners are where the eye tests your discipline. If the bond kinks at the entry or the return falls apart at the parapet, people will read the whole facade as unresolved, even if the field areas look excellent.

Skipping mockups and tolerance checks

Teams skip mockups when the schedule feels tight. They regret it when the first panel arrives and the color reads wrong, the reveal looks shallow, or the jamb transition needs a field patch. That is expensive learning.

If the coursing only works after a field adjustment, the design is not finished.

Tolerance checks matter just as much. A facade with no room for real-world variation is not precise. It is brittle.

Good Brick and Precast work is won in the sequence, not rescued in the field.

Set the module first, detail the transitions, prove the look in a mockup, and then build exactly what you coordinated. When you do, corners calm down, openings land cleanly, and the facade reads as one idea. Where does your next elevation still depend on hope instead of coordination?
